Complete Control - Part 3 Next up was the armour development and because I was running out of time, all the other finishing touches. The total time from design to completion took about 3 months, with the gross majority of the work happening in the last 3 weeks.

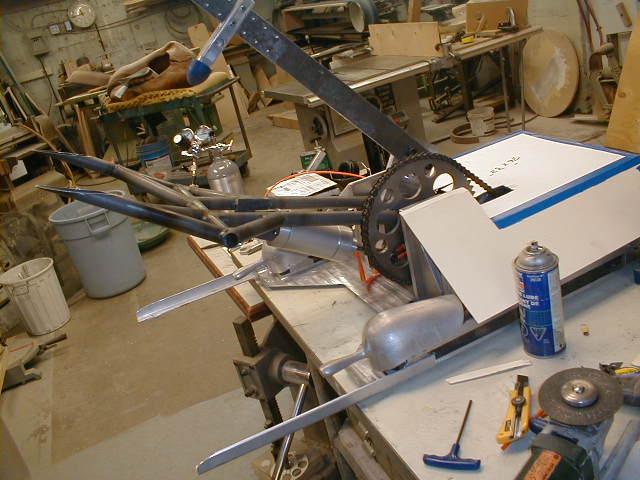

		The armour was mocked up in cardboard and tape. The front wheel covers are flour scoops. This idea came from my boss, Booth, who is a never ending fountain of novel ideas for robots and their visual designs.

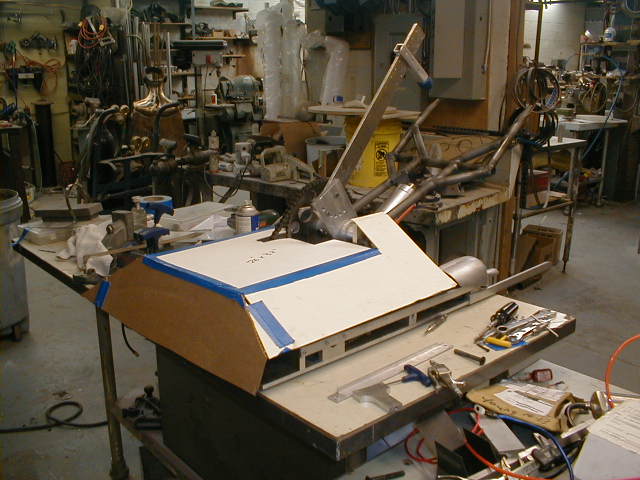

		Back end of the fake armour. Cardboard isn't generally accepted as a good armour material, so I decided to remake it out of Lexan.

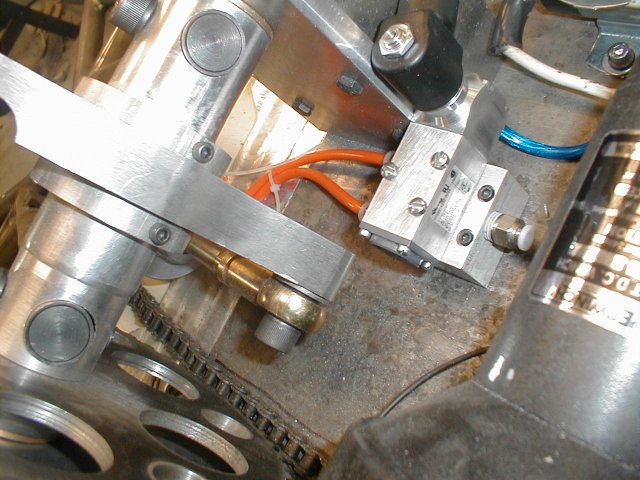

		Close up of the cylinder connection and the pneumatic valve. The valve was rated to 175 PSI, so I run it at 175. It produces close to 900 lbs of force, so the hardware is suitably beefy.

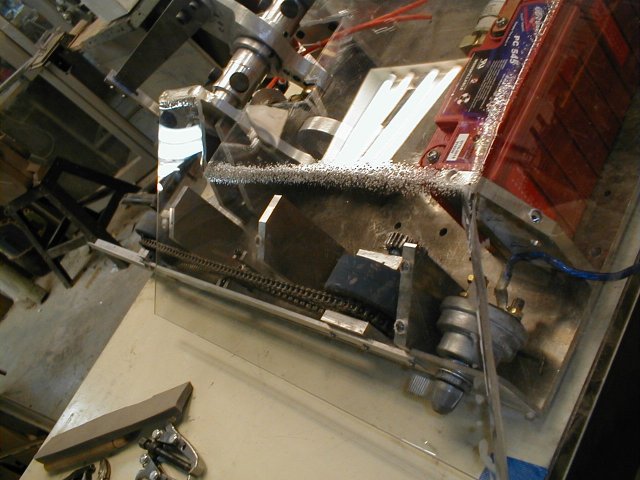

		One of the nicer heatbends that I managed to produce. Bending 3/16" lexan without it bubbling take far too much patience than I have. I was willing to put up with some bubbles. The Lexan does double duty as a battery retainer, as I ran out of space to put a strap across the top of them.

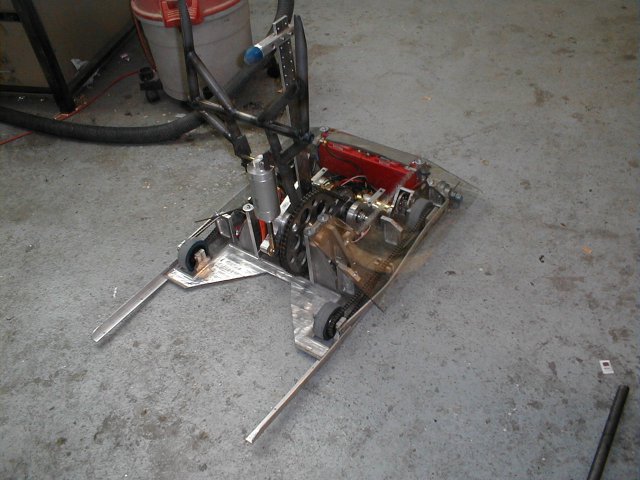

		The robot right after a nearly finished test drive around the shop. During that test drive, I attempted to pick up a work bench. This was not a good idea.

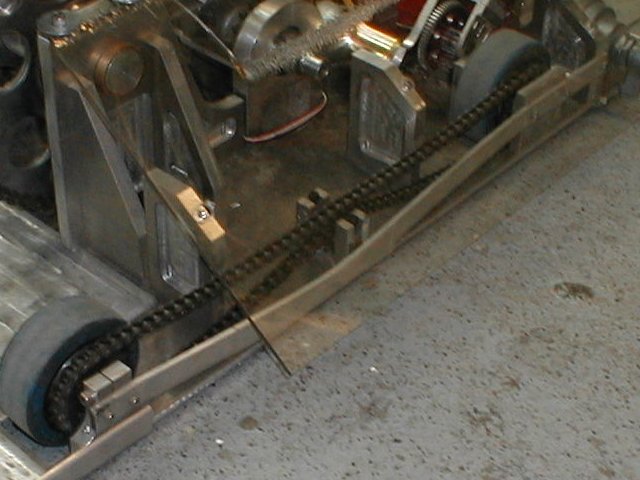

		The result of the lifting attempt. A slightly bent frame, and a very bent frame stiffener. These plate stiffeners were replaced with much stiffer angle aluminum strips. The frame was straightened out in a vise and the old stiffener was sent to the scrap bin.
